Description

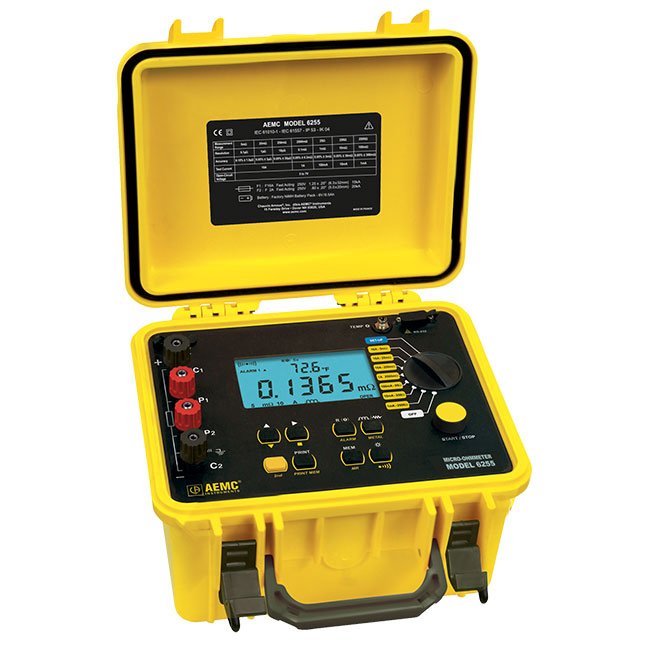

The AEMC 6255 is a 10 A micro-ohmmeter for measuring low resistance with four-wire Kelvin connections.
Resistive, inductive and automatic repetitive modes support plant and field measurements. Temperature compensation and result storage help compare and document tests. The instrument can test continuously at 10 A for up to 60 minutes under the manufacturer’s stated conditions.
Key specifications
- Maximum test current: 10 A
- Resistance ranges: 5 mΩ through 2500 Ω full-scale ranges
- Best resolution: 0.1 µΩ
- Memory: 1500 tests
- Temperature input: Three-wire 100 Ω platinum RTD
