Description

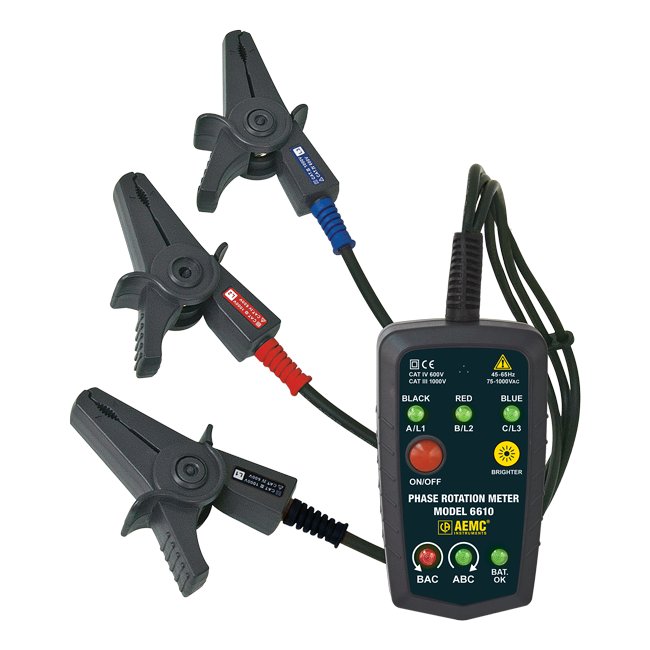

The AEMC 6610 identifies phase sequence using non-contact voltage-sensing clips on three-phase AC systems.
Its sensing clips have no metal contact points. LED and audible indications show phase rotation and phase presence to support installation and maintenance checks. The meter is useful when checking phase order for motors, generators and other three-phase equipment within its rated operating range.
Key specifications
- Operating voltage: 75–1000 VAC
- Frequency: 45–65 Hz
- Phase indication: ABC or BAC rotation LEDs
- Maximum clamping diameter: 30 mm
- Power: One 9 V alkaline battery
