Description

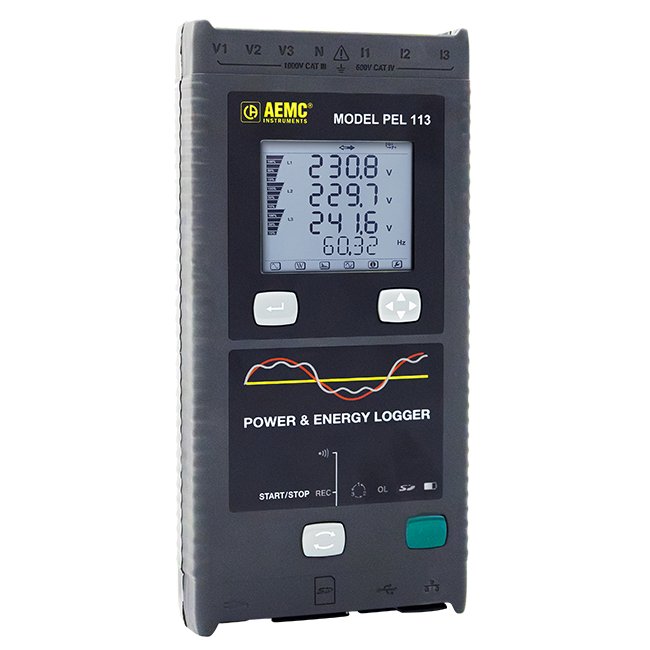

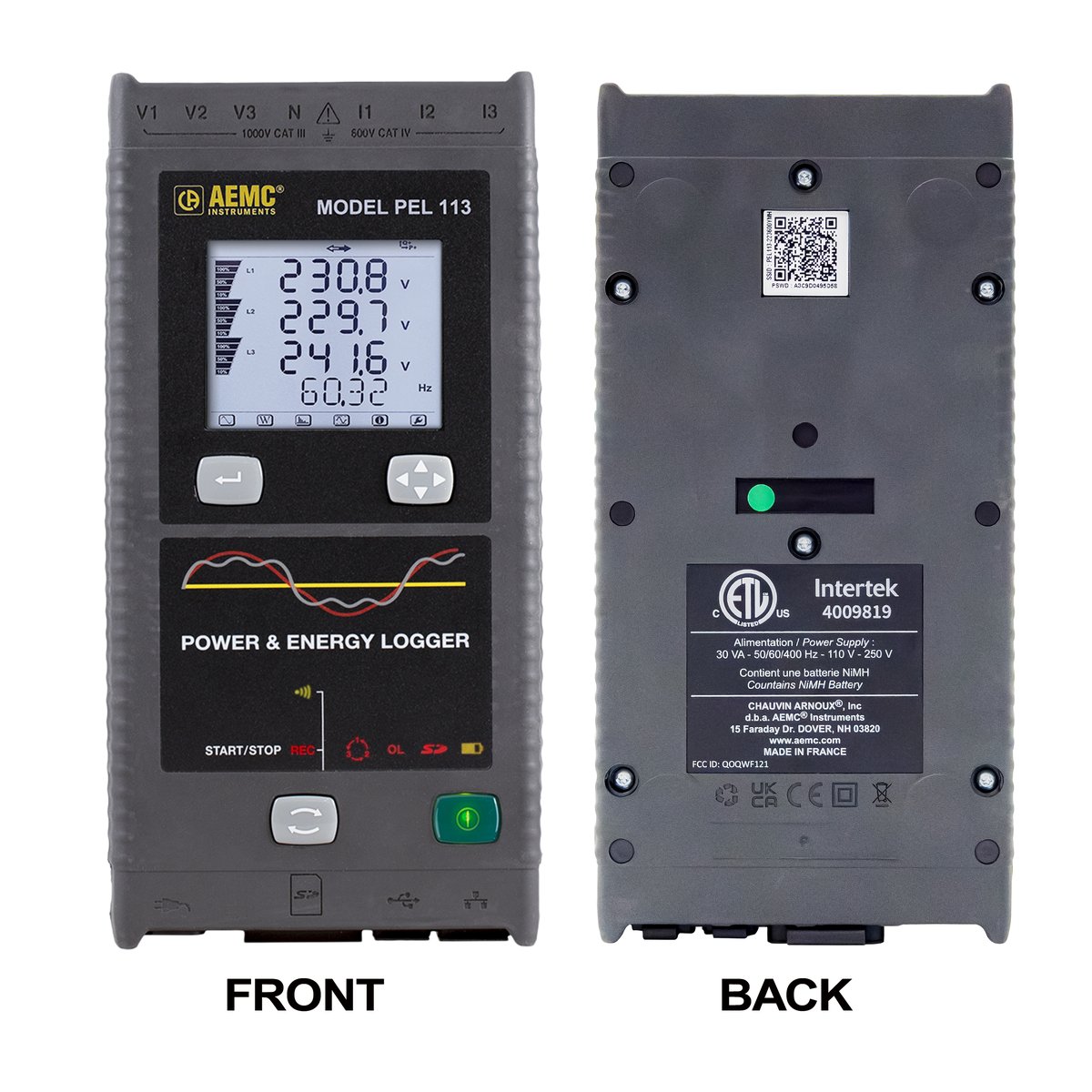

The AEMC PEL 113 is an LCD-equipped power and energy logger for electrical-system monitoring and energy audits.
It supports single-phase, split-phase and three-phase systems with long-term recording, harmonic analysis and configurable alarms. USB, Ethernet and Wi-Fi provide data-access options. Current measurement is sensor-dependent. Specify the required current sensors and connection accessories when requesting a quote.
Key specifications
- Inputs: Three voltage and three current inputs
- Voltage range: 10–1000 V AC/DC phase-to-neutral
- Harmonics: Through 50th order
- Storage: SD card, up to 32 GB
- Communication: USB, Ethernet and Wi-Fi
