Description

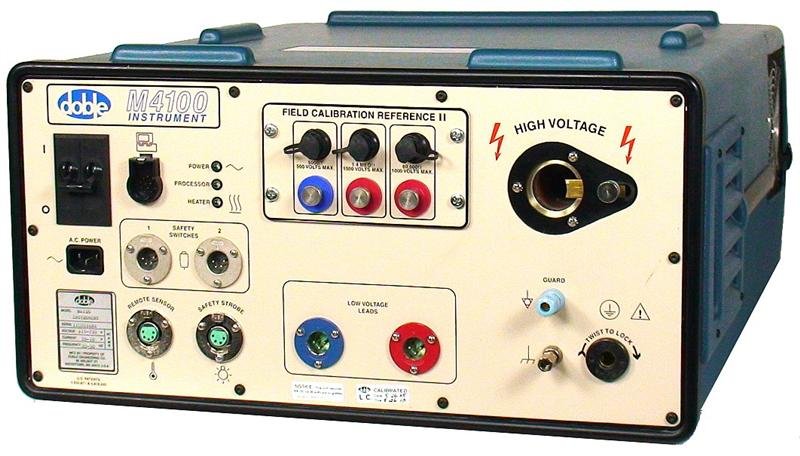

The Doble M4000/M4100 Automation Insulation Analyzer is the world’s premier power apparatus and insulation test instrument. Its unique combination of test capabilities and artificial intelligence analysis software makes it the power industry’s most trusted Power Factor/Tan-Delta instrument. These instruments are used around the globe thanks to their comprehensive testing options, safety features and measurement accuracy. The Doble M4000/M4100 is typically used to test high voltage equipment, including bushings and cables just to name a few. The Doble M4000/M4100 offers an advanced Line Frequency Modulation System that rejects EMI to ensure testing accuracy.
Doble continually updates and adds features to our equipment based on your testing needs. The latest features of the M4000/M4100 4th Generation test set include:
– Rugged Power Unit Module
– High Accuracy Measurement Module
– Doble Universal Controller interoperability
– High Reliability Interface Module
– Expanded DTA6 Software system & FRANK™ Artificial Intelligence Engine
– GFIC Class B and RCBO Compatibility
– Safety firmware and sensing system
M4000/M4100 Diagnostic Capabilities:
– 12 kV Power Factor/Tan-Delta capacitance testing to assess insulation condition & dielectric loss
– High stress and high accuracy 10 kV TTR with the Doble-TTR Capacitor
– Winding Leakage Reactance testing with the M4110 to detect winding deformation or damage
– 10 kV Single-Phase Excitation Current testing to detect degraded turn-to-turn insulation damage and magnetic circuit anomalies
