Description
Capture power-quality events, demand and energy data with a portable eight-channel analyzer.

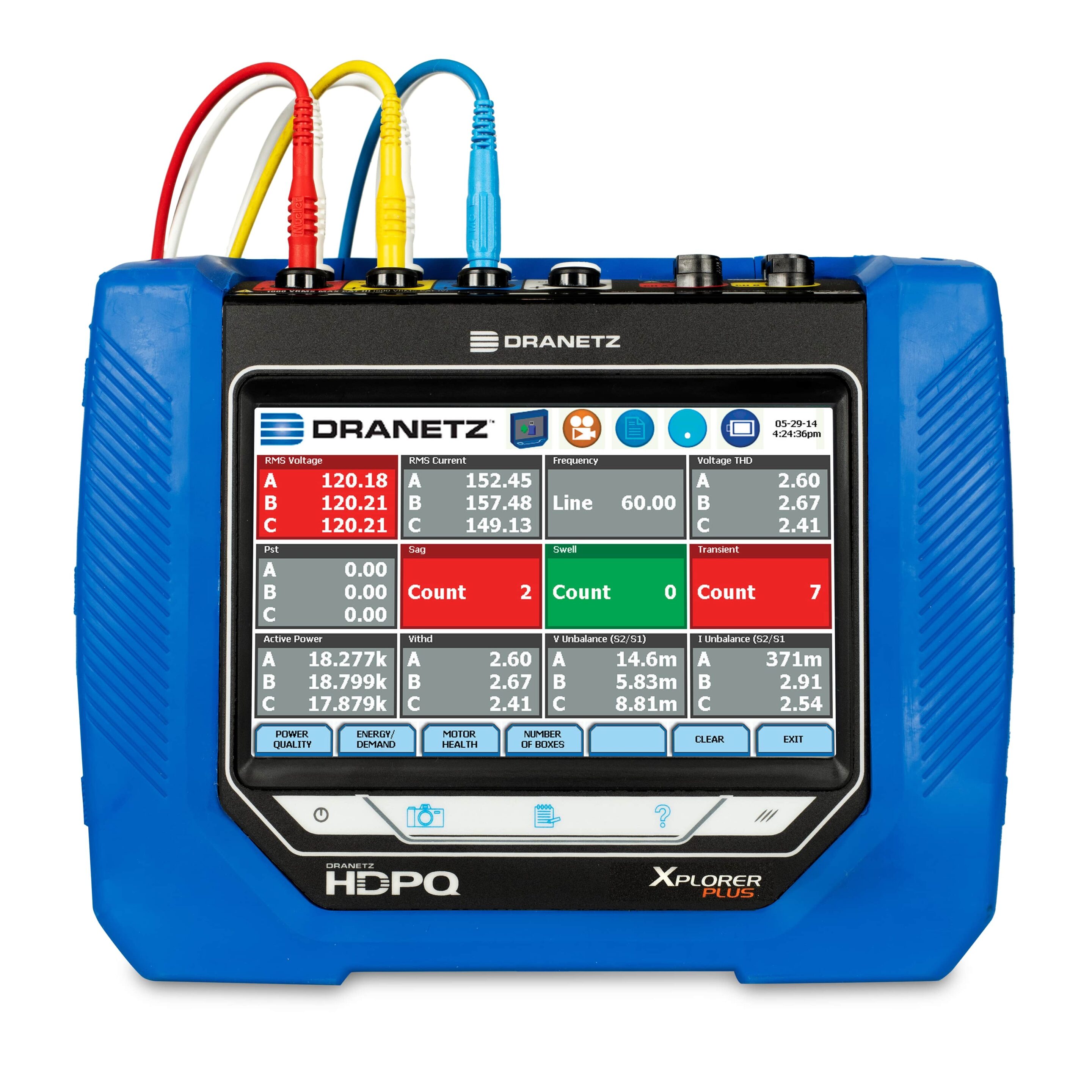

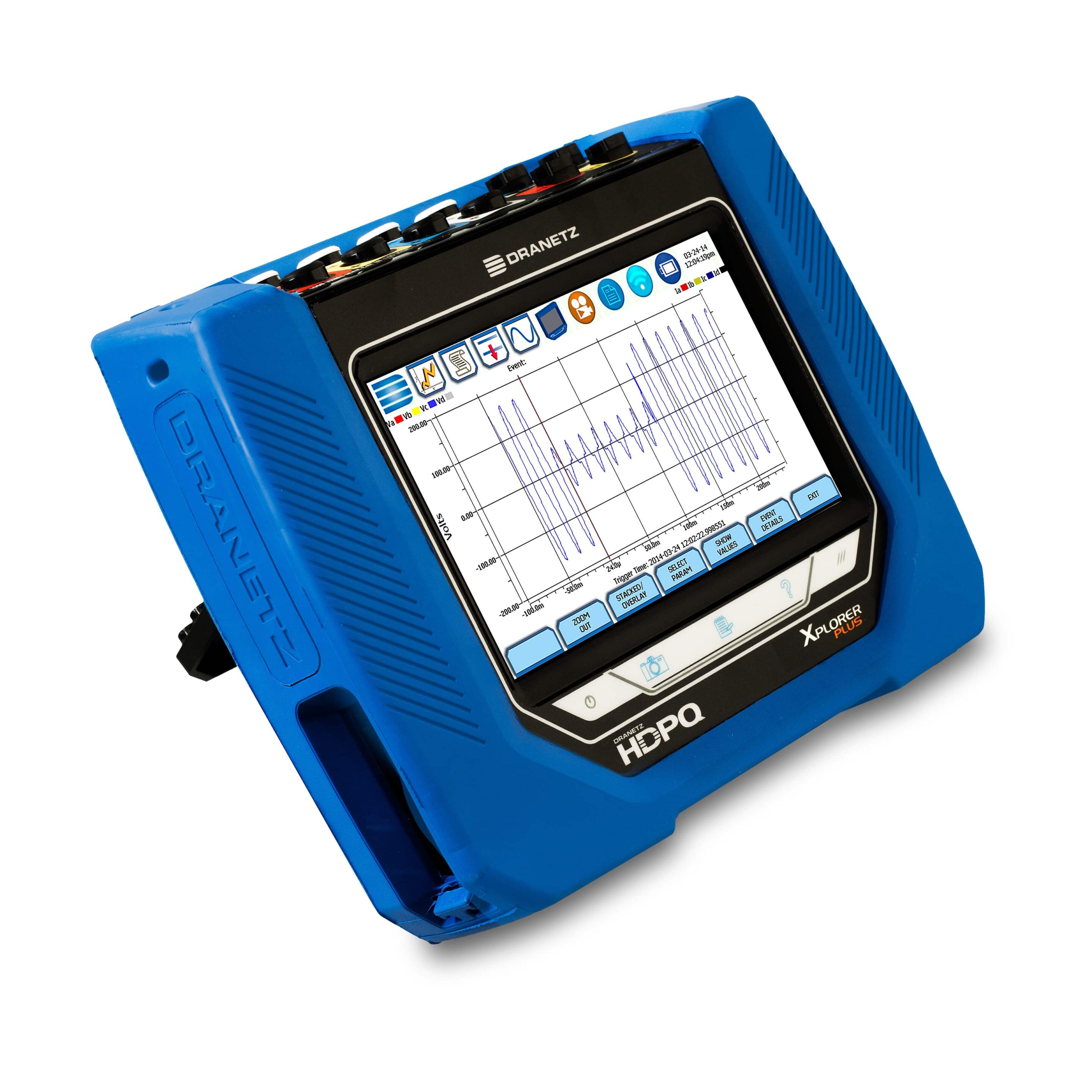

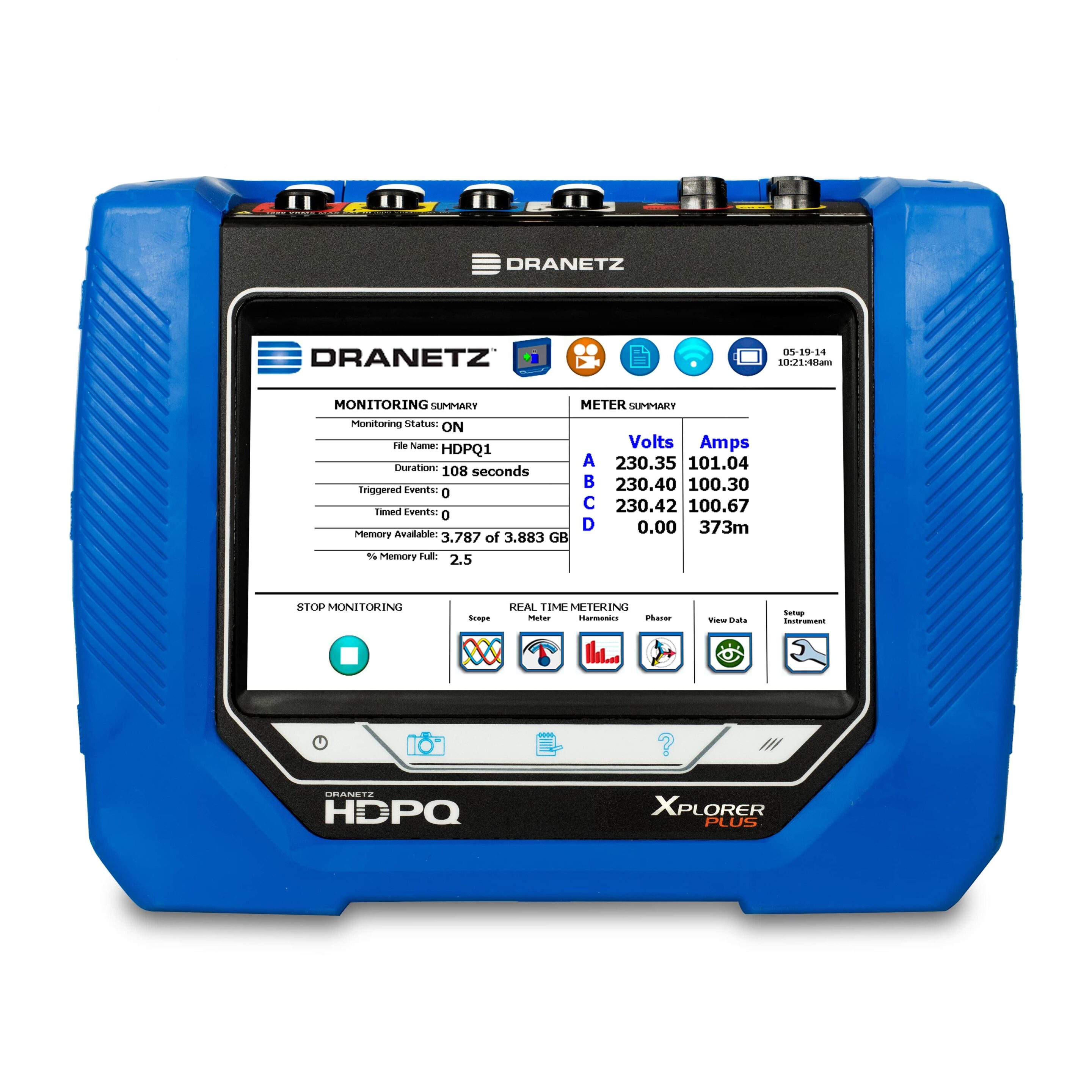

The HDPQ Xplorer Plus records voltage and current behavior, including sags, swells, interruptions, harmonics and fast transients. Its touchscreen supports local setup and review, while network connectivity enables remote access with suitable software. Four voltage and four current channels support investigations of three-phase electrical systems; current range depends on the selected probes.
Key specifications

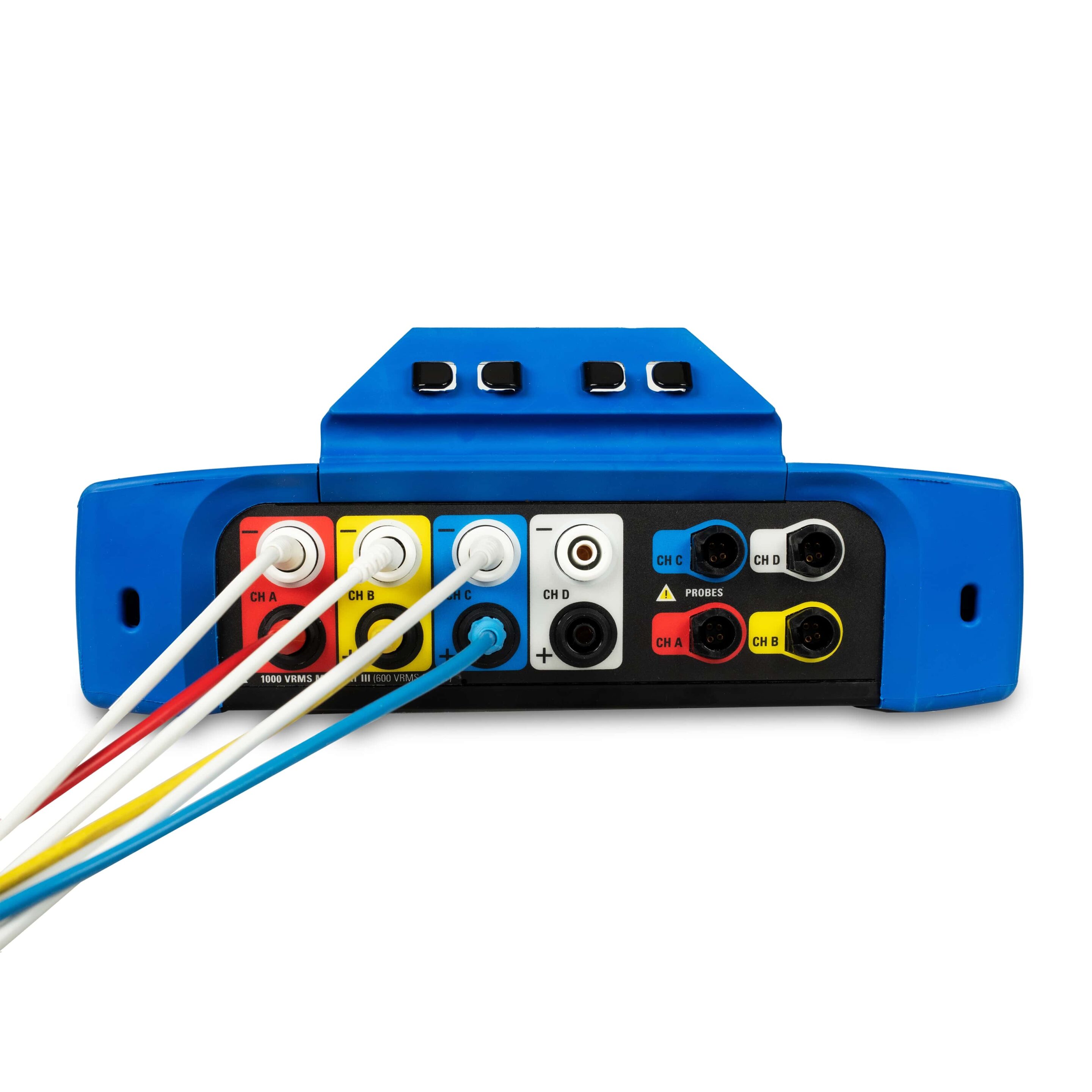

- Channels: Four voltage and four current
- Voltage measurement: Up to 1,000 V rms AC/DC
- Transient capture: Down to 1 µs per channel
- Waveform sampling: 512 samples per cycle per channel

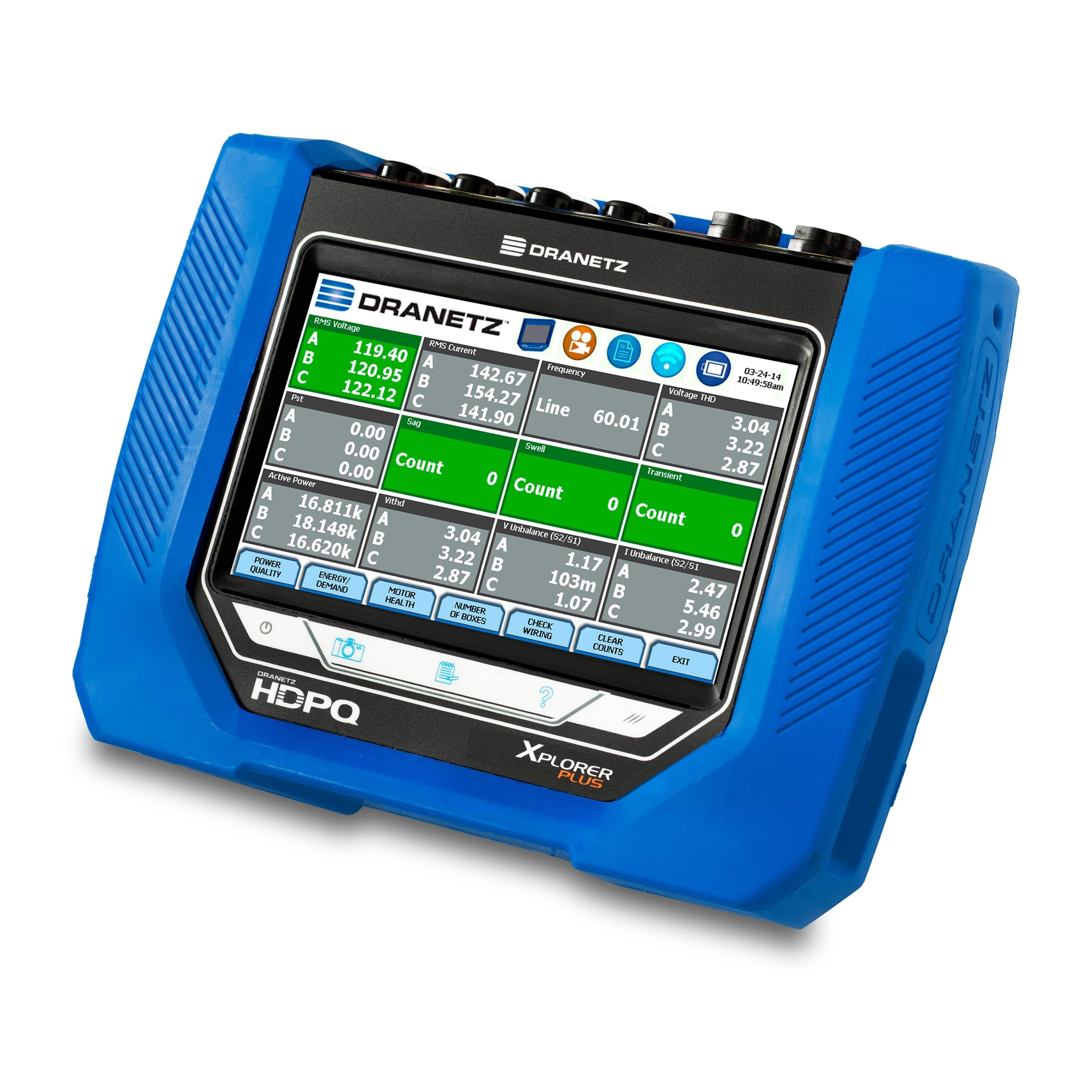

- Display: 7-inch color touchscreen
- Current measurement: Probe dependent
- Communications: Ethernet and USB; wireless options depend on configuration
