Description
Locate SF 6, ammonia and ethylene leaks with a GF 77 camera configured for the 25° HR spectral band.

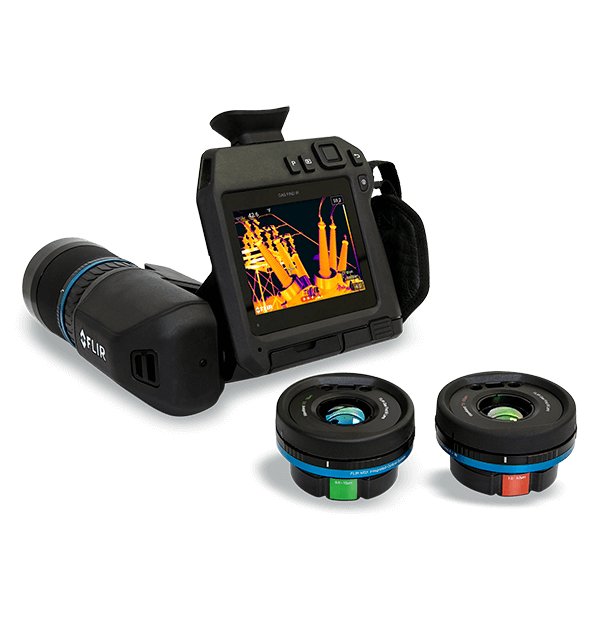

The GF 77 combines uncooled optical gas imaging with radiometric thermal inspection. Its rotating optical block, viewfinder and touchscreen help technicians inspect electrical equipment and process systems. Gas visibility depends on gas concentration, background contrast and site conditions. The specified HR lens covers 9.5–12 µm; methane detection requires a different LR lens and is not promised for this configuration. Additional lenses and software shown in stock imagery are confirmed with the quote.
Key Specifications
- Configuration: 25° HR lens; 9.5–12 µm spectral band
- Infrared resolution: 320 × 240 pixels
- Field of view: 25° × 19°
- Primary HR gases: Sulfur hexafluoride (SF 6), ammonia and ethylene
- Image frequency: 30 Hz
- Display: 4-inch touchscreen with viewfinder
Request a rental or sales quote to confirm the equipment configuration and accessories for your application.
