Description
Visualize ultrasound to locate pressurized leaks, partial discharge and mechanical fault sources.

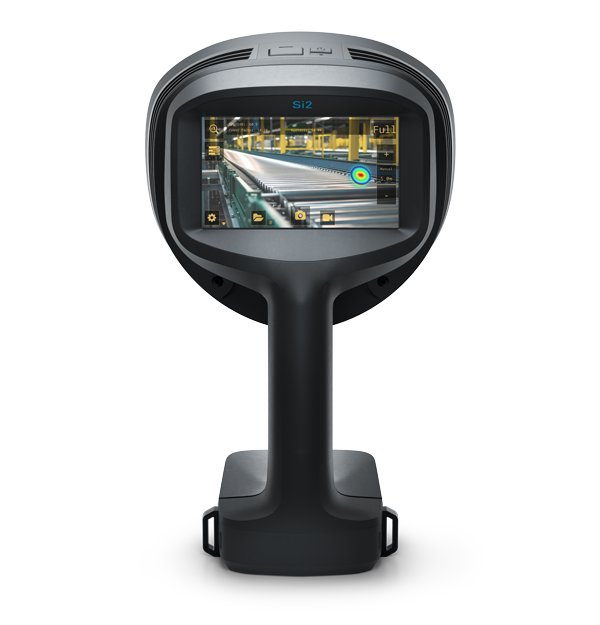

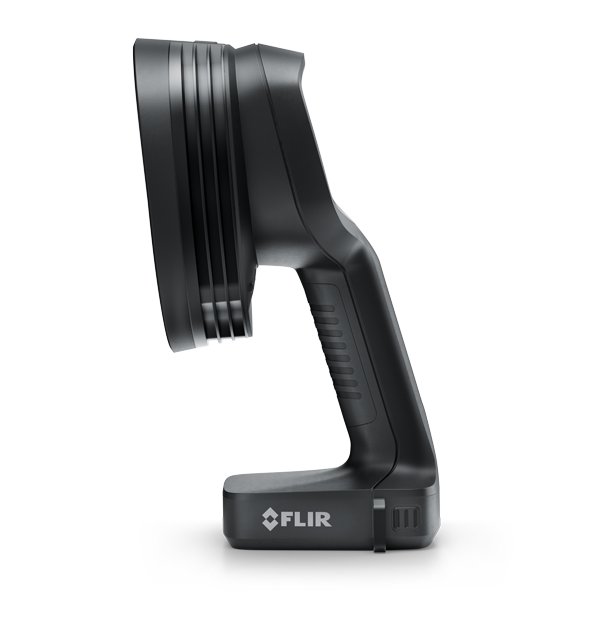

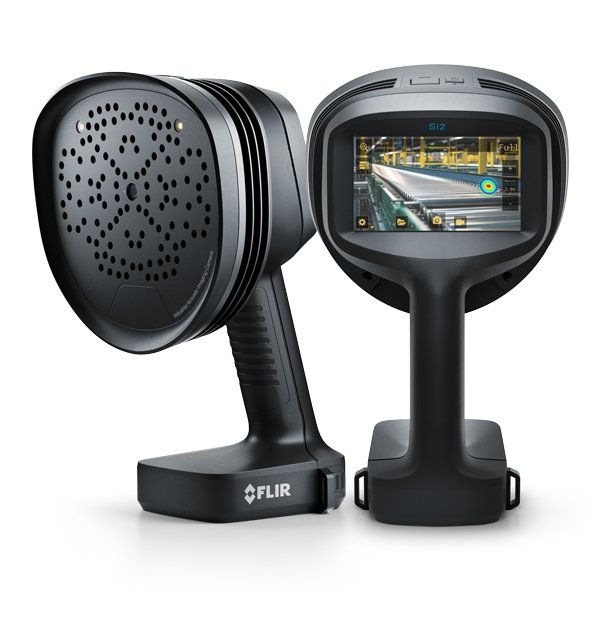

The Si2-Pro combines a microphone array with visible imagery to show the location of acoustic emissions. Selectable analysis tools support industrial inspections and documentation. Detection distance and leak sensitivity depend on the source, background noise and operating conditions.
Key Specifications
- Microphones: 124 low-noise MEMS microphones
- Acoustic bandwidth: 2–130 kHz
- Applications: Pressurized gas leaks, partial discharge and mechanical faults
- Display: 5-inch touchscreen
- Specified detection distance: 0.3–200 m, application dependent
Request a rental or sales quote to confirm the equipment configuration and accessories for your application.
