Description

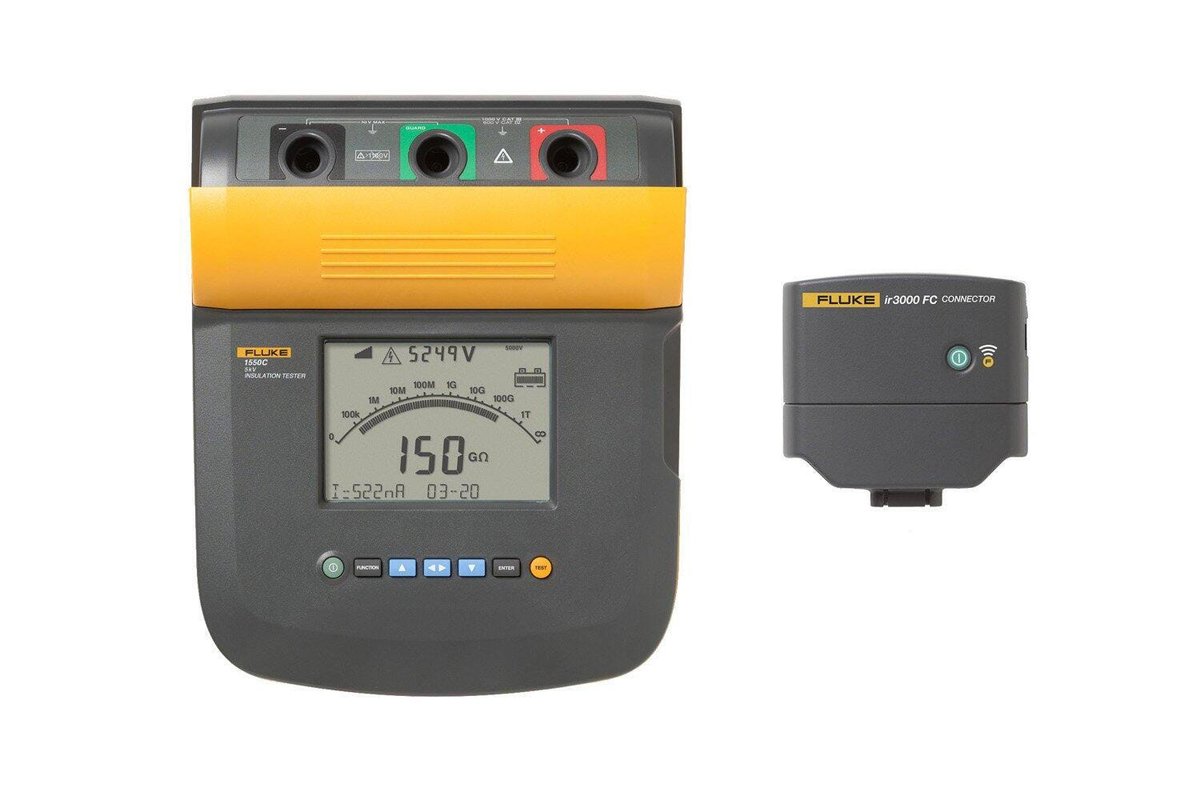

Test insulation on motors, cables and switchgear at selectable voltages up to 10 kV.

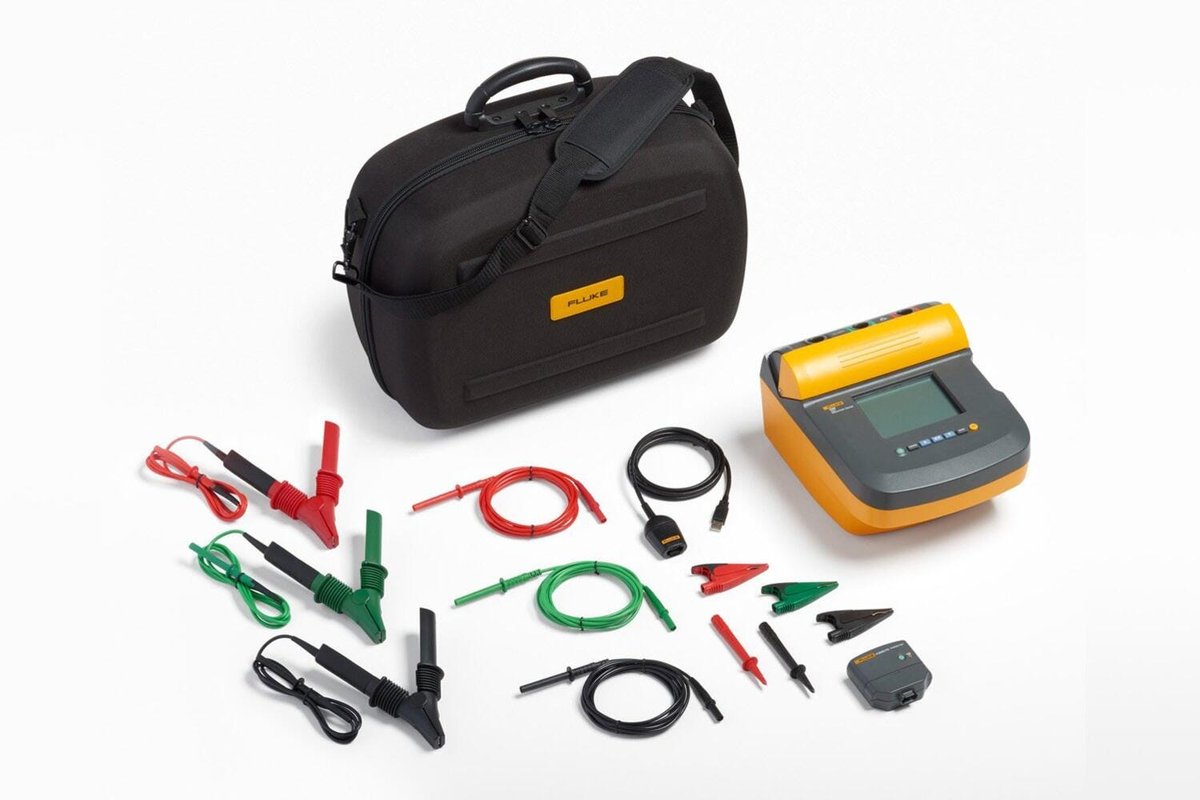

The tester supports insulation condition assessment through timed tests, automatic polarization index and dielectric absorption ratio calculations. A guard terminal helps reduce surface leakage effects, while capacitance and leakage-current measurements add context to resistance results. Ramp testing and stored readings support maintenance trending. Wireless connectors and kit contents are confirmed with the quote.
Key Specifications
- Maximum insulation test voltage: 10 kV DC
- Insulation resistance range: Up to 2 TΩ; range and accuracy depend on test voltage
- Timed testing: Up to 99 minutes
- Diagnostic functions: PI, DAR, ramp, leakage current and capacitance
- Measurement storage: 99 locations
- Safety category: CAT III 1000 V / CAT IV 600 V
Request a rental or sales quote to confirm the equipment configuration and accessories for your application.
