Description

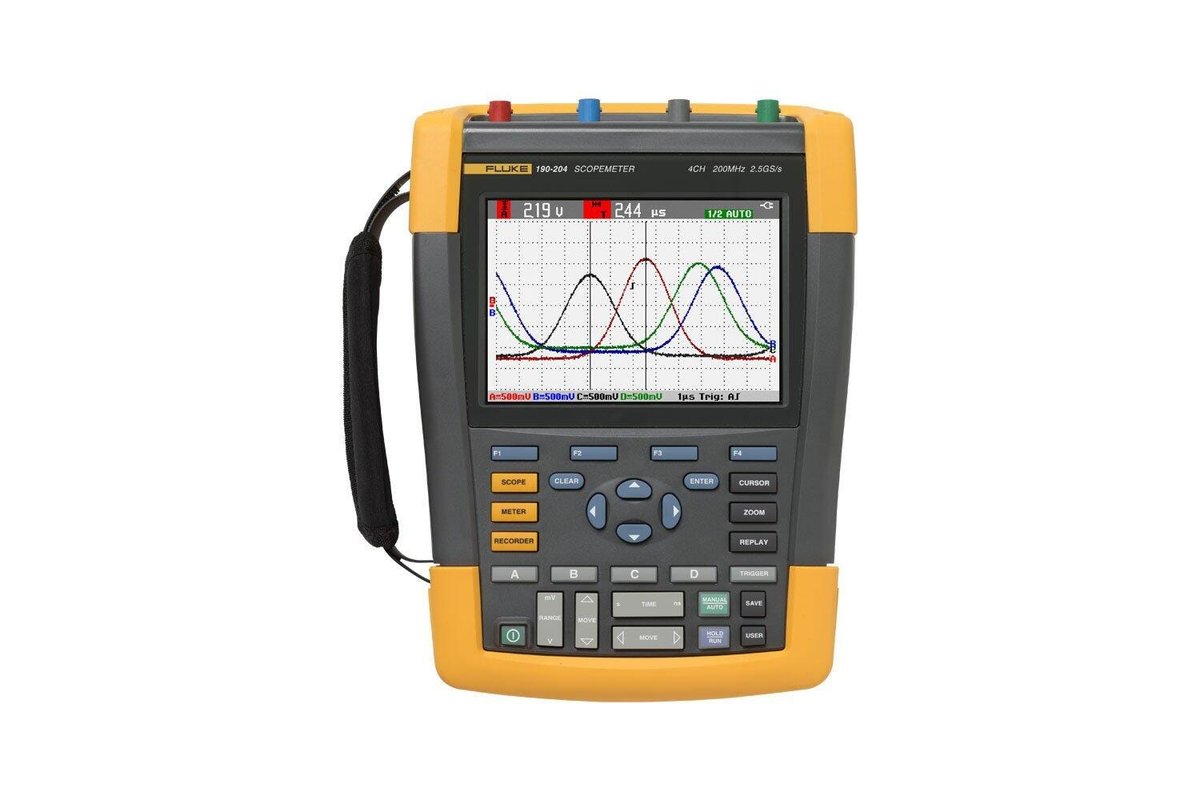

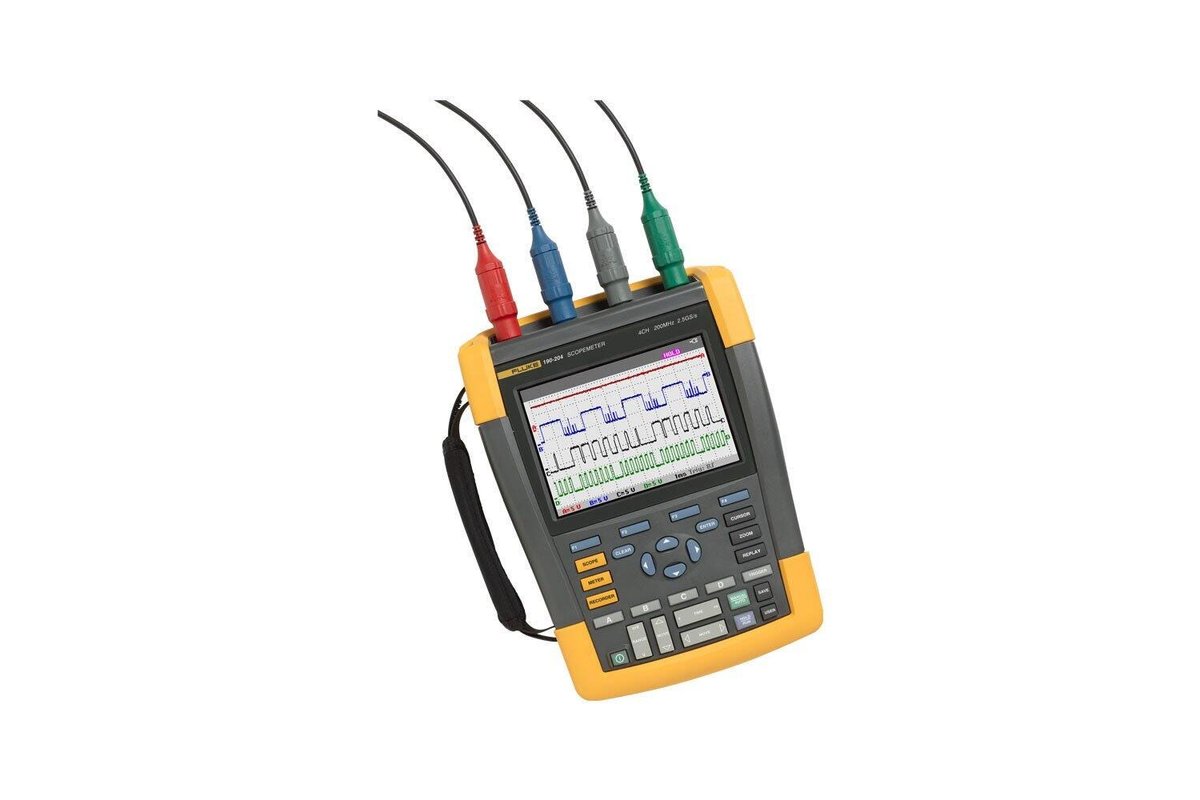

Analyze industrial signals with a four-channel, 200 MHz portable oscilloscope.
The 190 Series II instrument combines isolated inputs with waveform capture and recording for industrial troubleshooting. Connect-and-View triggering helps stabilize changing signals, while ScopeRecord and TrendPlot support longer observations. The /AM/S identifier is preserved from NetSuite; the actual probe set, case and software are confirmed with the quote.
Key Specifications
- Bandwidth: 200 MHz
- Channels: Four independently isolated inputs
- Maximum real-time sampling: 2.5 GS/s, depending on channel configuration
- Waveform memory: 10000 points per input in scope mode
- Recording functions: ScopeRecord and TrendPlot
- Safety category: CAT III 1000 V / CAT IV 600 V
Request a rental or sales quote to confirm the equipment configuration and accessories for your application.
