Description
Apply configurable voltage and current sources for protective relay testing.

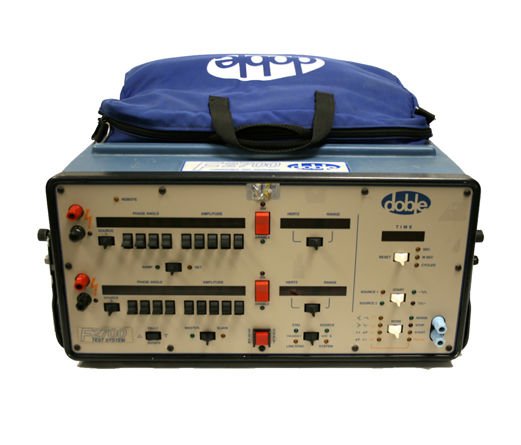

The F2700 uses two convertible sources for combinations of voltage and current suited to single-phase relay checks. Front-panel controls support adjustments during pickup and timing tests. Multiple-source arrangements and external control can be coordinated for the protection scheme being tested.
Key specifications
- Sources: Two convertible sources
- Configurations: Voltage/current, two voltages or two currents
- Functions: Relay pickup, timing and phase checks
- Control: Front-panel operation
