Description

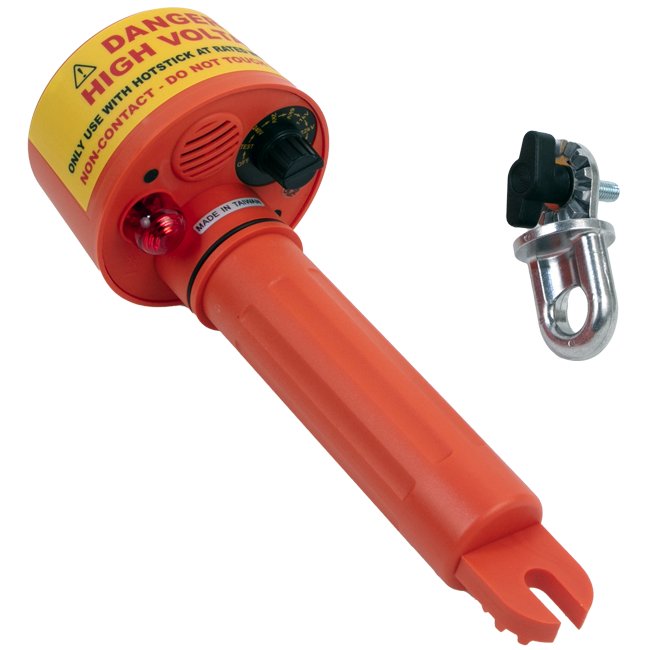

The AEMC 275HVD detects the electric field around energized AC conductors and provides visible and audible indication.
Eight selectable ranges cover applications from 240 V through 275 kV. A self-test position checks the detector circuitry and indicators. Its universal spline supports attachment to a suitable hot stick. Select the detector and insulating equipment for the system and follow the manufacturer instructions. The detector is an indication device, not a numerical voltmeter.
Key specifications
- Detection ranges: 240 V; 2, 6, 11, 22, 33, 132 and 275 kV
- Detection frequency: 45–70 Hz
- Indication: Red LED and audible buzzer
- Power: Three 1.5 V C batteries
