Description

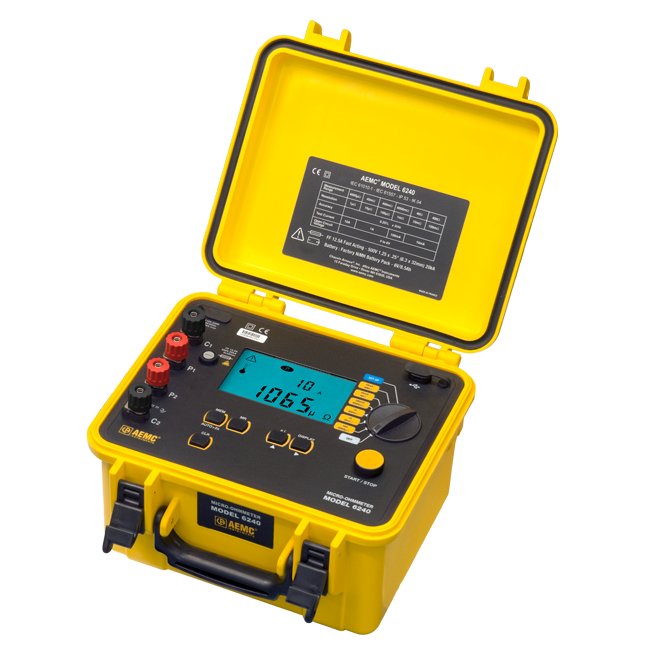

The AEMC 6240 measures low resistance using four-wire Kelvin connections and selectable test currents up to 10 A.
It supports resistive and inductive measurements for maintenance of connections, conductors and electrical components. Polarity reversal helps assess low-resistance measurements. Stored results can be transferred for reporting with the manufacturer’s DataView software.
Key specifications
- Resistance range: 5 µΩ–399.9 Ω
- Best resolution: 1 µΩ
- Nominal test currents: 10 A, 1 A, 100 mA and 10 mA
- Storage: 99 measurements
- Method: Four-wire Kelvin
