Description

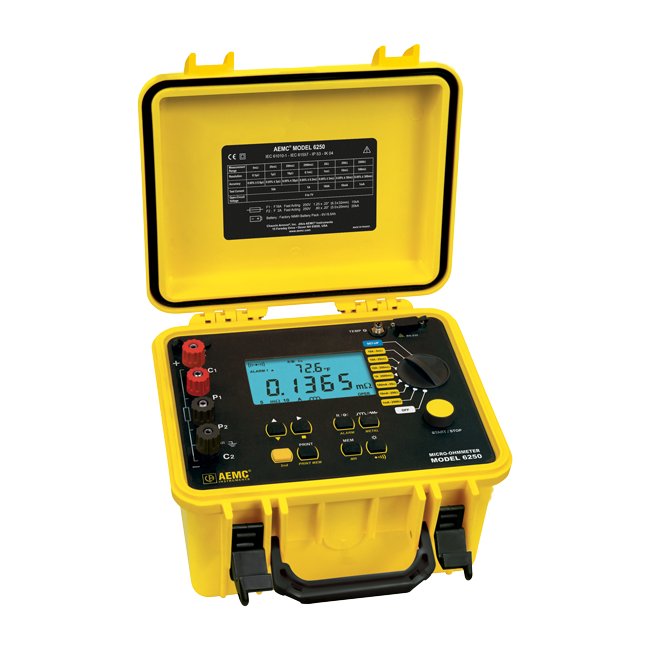

The AEMC 6250 is a four-wire micro-ohmmeter for low-resistance measurements on resistive and inductive equipment.
Instantaneous, continuous and repetitive test modes support different measurement tasks. Temperature measurement and compensation functions help compare resistance results under changing conditions. The manufacturer identifies the 6250 as discontinued and replaced by the 6255. Ask ECP about the available rental or sales option.
Key specifications
- Maximum test current: 10 A
- Resistance ranges: 5 mΩ through 2500 Ω full-scale ranges
- Best resolution: 0.1 µΩ
- Memory: 1500 tests
- Manufacturer lifecycle: Discontinued; successor 6255
