Description

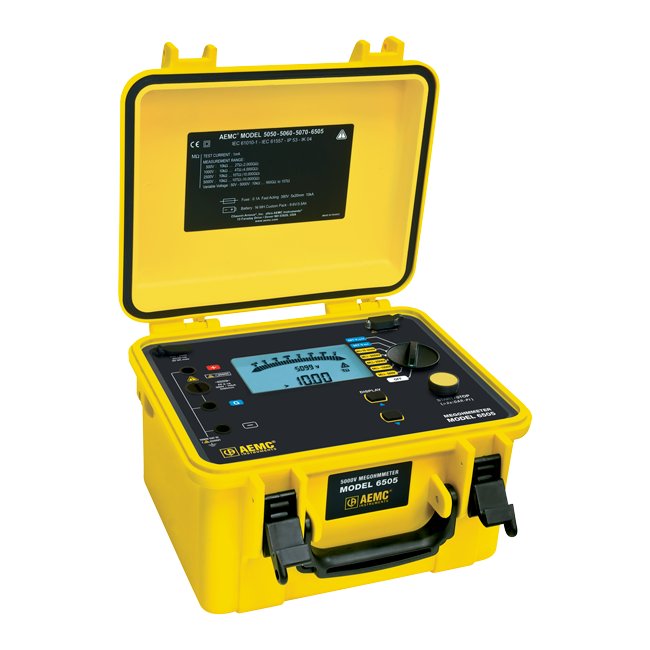

The AEMC 6505 is a portable 5 kV megohmmeter for electrical insulation testing.
Fixed and adjustable test voltages support a range of maintenance measurements. Automatic DAR and PI calculations help assess insulation behavior over time. The instrument provides automatic discharge and can operate from its rechargeable battery or external AC supply.
Key specifications
- Fixed test voltages: 500, 1000, 2500 and 5000 V
- Variable test voltage: 40–5000 V
- Maximum insulation resistance: 10 TΩ at 2500 or 5000 V
- Diagnostic calculations: DAR and PI
