Description

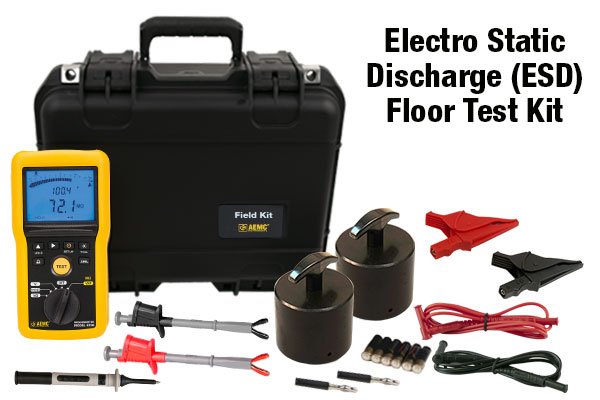

The AEMC 6536 ESD Floor Test Kit measures resistance in flooring systems using the 6536 megohmmeter and weighted floor electrodes.
Point-to-point and point-to-ground tests help evaluate conductive and static-dissipative flooring. AEMC identifies this kit as catalog 2155.57 with two 5 lb electrodes. The manufacturer specifies adjustable 10–100 V insulation testing. A backlit display and adjustable alarm support repeatable field measurements.
Key specifications
- Manufacturer catalog number: 2155.57
- Insulation test voltage: 10–100 V in 1 V steps
- Maximum insulation resistance: 20 GΩ at 100 V
- Floor electrodes: Two 5 lb weights with conductive rubber bases
