Description

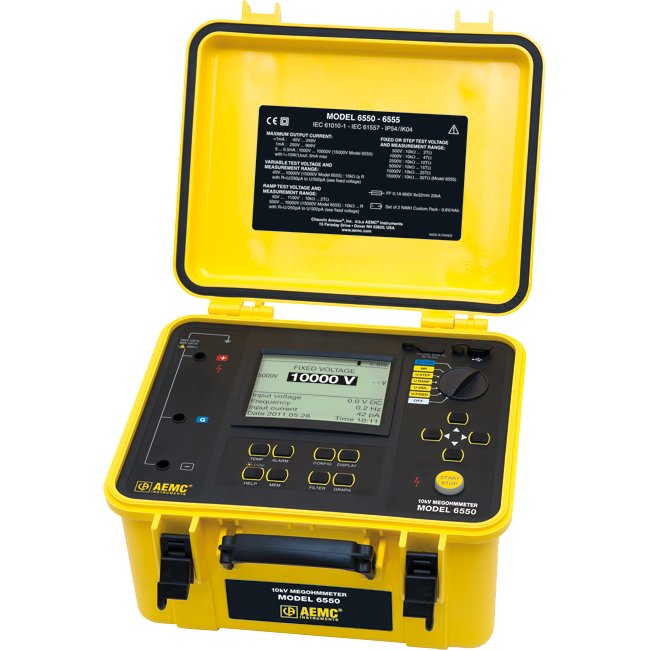

The AEMC 6550 is a graphical 10 kV megohmmeter for insulation testing of high-voltage cables and equipment.
Programmable ramp and step-voltage tests supplement fixed-voltage measurements. Its display presents test information graphically, and stored data can be transferred through an optically isolated USB connection. Battery and AC operation support field testing and longer measurement sessions.
Key specifications
- Fixed test voltages: 500, 1000, 2500, 5000 and 10,000 V
- Variable test voltage: 40–10,000 V
- Maximum insulation resistance: 25 TΩ at 10 kV
- Diagnostic calculations: DAR, PI and DD
- Storage: 256 registers, up to 80,000 points
