Description

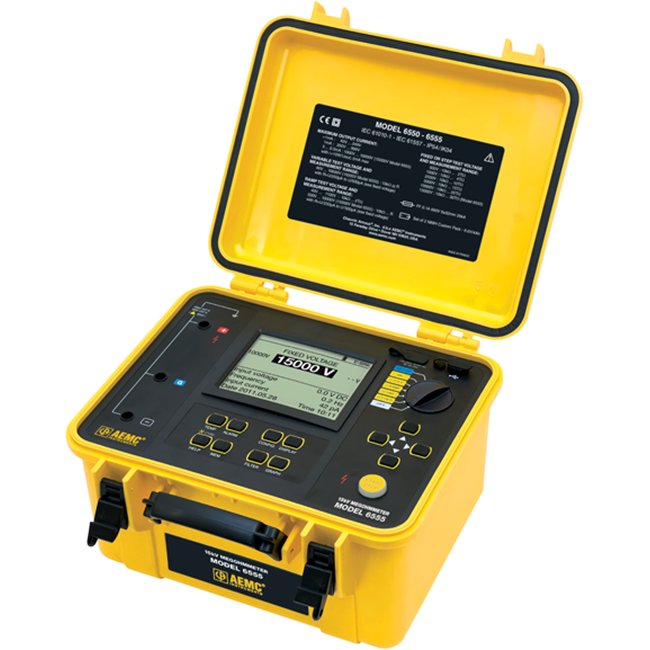

The AEMC 6555 is a graphical 15 kV megohmmeter for testing insulation on high-voltage electrical equipment and cables.
Fixed, ramp and step-voltage tests support detailed insulation assessment. The display and onboard memory capture test behavior, and optically isolated USB communication supports reporting. Rechargeable batteries and AC operation provide power options for field work.
Key specifications
- Fixed test voltages: 500, 1000, 2500, 5000, 10,000 and 15,000 V
- Variable test voltage: 40–15,000 V
- Maximum insulation resistance: 30 TΩ at 15 kV
- Diagnostic calculations: DAR, PI and DD
- Step test: Up to 10 programmable steps
