Description

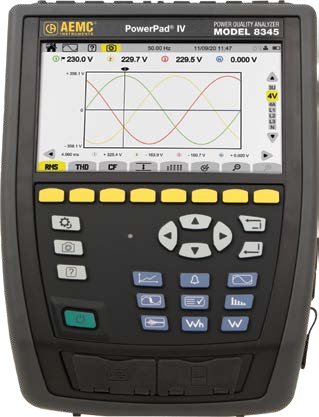

The AEMC PowerPad IV 8345 is a portable three-phase power quality analyzer for recording electrical-system behavior.
Class A measurements support investigation of power quality, harmonics, transients and energy use. Trend and alarm functions help document events over time. USB, Ethernet and Wi-Fi support data access. Current measurement depends on the connected sensors; specify the circuit and required sensor range when requesting a quote.
Key specifications
- Voltage input range: 5–1000 VAC/VDC

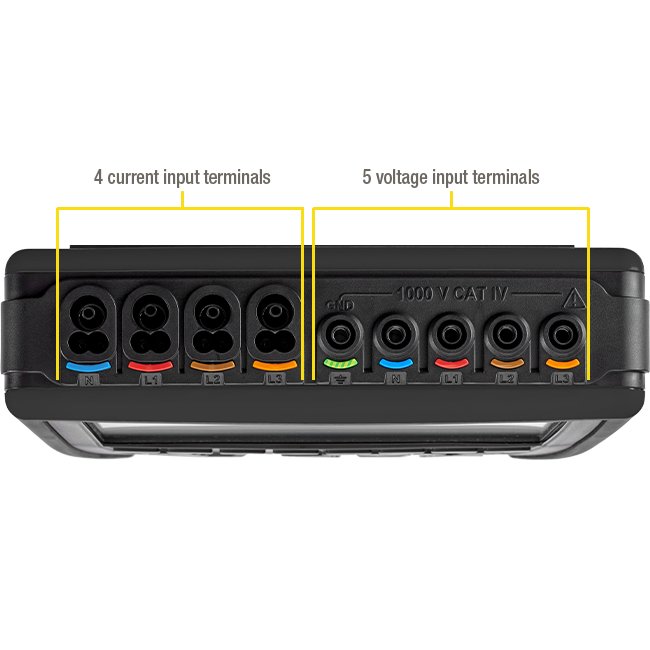

- Inputs: Five voltage terminals and four current inputs
- Measurement standard: IEC 61000-4-30 Edition 3, Class A
- Harmonics: Through 127th order
- Display: 7-inch color touch screen
