Description
Assess outlet wiring and circuit loading with selectable test loads and voltage-drop measurements.

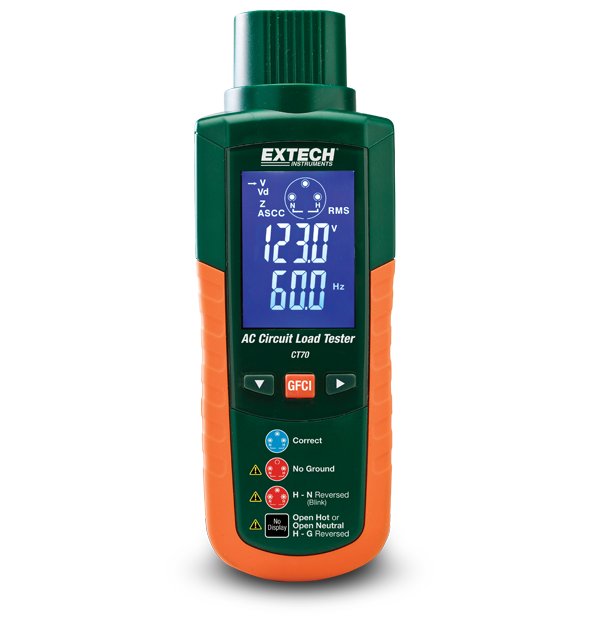

The CT70 compares loaded and unloaded line voltage and checks wiring conditions, conductor impedance and GFCI operation. Its 12, 15 and 20 A load selections support branch-circuit evaluation. Connection suitability and the correct test procedure must be matched to the installation.
Key Specifications
- AC voltage: 90–240 V
- Frequency: 45–65 Hz
- Test loads: 12, 15 and 20 A
- Voltage-drop range: 0.1–99.9%
- Tests: Outlet wiring, impedance and GFCI trip measurements
- Safety category: CAT II 300 V
Request a rental or sales quote to confirm the equipment configuration and accessories for your application.
